A perfect 3D model on a computer screen does not always translate into a perfect physical part. In the world of high-precision production, the transition from a digital concept to a tangible component involves complex thermal dynamics, material science, and mechanical engineering. For brand owners and engineering buyers, the primary risk is not the initial design itself, but the unexpected dimensional variations that occur during mass production. Professional DFM analysis services act as the critical bridge that bridges the gap between an aesthetic sketch and a dimensionally stable, manufacturable product.
What is Design for Manufacturing in Custom Plastic Injection Molding?
Design for manufacturing is an engineering practice focused on optimizing product designs for the most efficient and cost-effective manufacturing process. In the context of custom plastic injection molding, this discipline goes far beyond checking if a part can be made. It involves a deep dive into how every feature of a part—from wall thickness to rib structure—will behave when molten resin is injected under high pressure and subsequently cooled.
By integrating design for manufacturing principles at the earliest stages of development, Maidder ensures that potential failures are addressed before a single piece of steel is cut for the mold. This proactive approach transforms a static CAD file into a dynamic blueprint for success, balancing aesthetic requirements with the physical realities of the injection process.
How Professional DFM Analysis Services Identify Hidden Risks
Technical success in complex projects depends on more than just software; it requires years of hands-on experience. Standard manufacturing often overlooks subtle risks like air marks, silver streaks, or weld lines. Through comprehensive DFM analysis services, these issues are identified through simulations and expert review. Evaluating the confluence of material streams or the gate locations prevents structural weaknesses that could lead to part failure in the field.
Why DFM Analysis Services Are the Secret to Dimensional Stability
Dimensional stability refers to the capacity of a plastic part to keep its initial dimensions during exposure to various environments and stress. It is important that one has full knowledge of the effects of shrinkage and warpage because they are the two main factors affecting tolerance in custom plastic injection molding.
What Causes Dimensional Fluctuations
When plastic cools, it naturally shrinks. If the cooling is uneven due to inconsistent wall thickness or poor gate placement, the internal stresses cause the part to warp or sink. Maidder addresses these physical challenges by optimizing the part structure during the design for manufacturing phase. Ensuring uniform wall thickness and strategic cooling channel placement allows for predictable, repeatable dimensions across millions of cycles.
How to Achieve Precision Tolerances
To guarantee that parts meet the strict specifications of sectors like medical and automotive, Maidder employs advanced metrology tools. Quality validation, dimensional inspection, and production control are essential stages in achieving reliable injection molded parts. Read more about injection molding quality assurance process.
The quality department is equipped with coordinate measuring machines (CMM) and optical measuring instruments. Furthermore, Minitab software is used for dimensional and statistical analysis, ensuring that the production process remains within control limits. This data-driven approach provides the level of reliability required for high-stakes industrial projects.
Impact of Material Selection on Stability
Choosing the right resin is a foundational component of design for manufacturing. Materials like LLDPE (Linear Low-Density Polyethylene) are prized in outdoor applications for their toughness and weather resistance, while PU foam insulation requires specific injection parameters to maintain density. Maidder provides expert advice on material selection, evaluating thermal, mechanical, and chemical properties to ensure compatibility with both the moulding process and the end-use environment.
Step-by-Step: Mastering the DFM Process Steps for Reliable Production

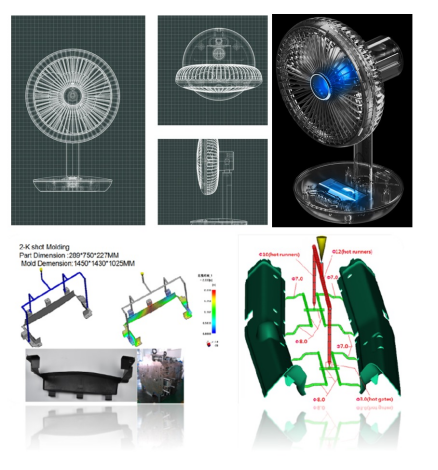

A disciplined execution of DFM process steps is what separates a reliable manufacturing partner from a basic molding shop. At Maidder, this process is structured to provide total transparency and risk mitigation for the client.
Initial Concept and Technical Feasibility
The journey begins with an initial technical review of the design concept. Whether the part is a complex medical housing or a robust outdoor cooler component, the feasibility of the mechanical structures is weighed against the desired aesthetics. This stage identifies the basic manufacturing path and potential "deal-breakers" in the design.
Advanced Simulation and Moldflow Analysis
Maidder provides free moldflow analysis for complex and high-precision products. This simulation software predicts how the melt front moves through the cavity, identifying potential air traps, pressure drops, or areas of excessive shear heating. By visualizing the injection process digitally, engineers can adjust gate locations and venting strategies to optimize the flow.
Engineering Optimization and Cost Reduction
During the optimization phase, structural adjustments are made to reduce material usage and cycle times without sacrificing strength. For example, in the case of the development of hard outdoor coolers, Maidder has been able to introduce structures that increase impact resistance without adding weight to the structure. This process normally involves fine-tuning of draft angles and ejector pin locations to ensure smooth part ejection.
Final Design for Manufacturing Approval
The final stage of the DFM process steps is the formal approval of the design for manufacturing. Maidder follows a rigorous structured validation process
to ensure compliance with production plans and schedule requirements. This includes first-piece inspection and batch traceability systems, providing a clear record of quality from the very first shot.
Why Maidder is Your Engineering-Driven One-Stop Partner
Maidder stands out as an engineering-led OEM/ODM partner rather than a simple processing factory,combining Dongguan-based R&D and engineering support with manufacturing capacity in Cambodia. The ability to manage a project from initial concept through to final assembly and packing provides a level of coordination that minimizes communication errors and accelerates time-to-market.
One-Stop From DFM to Mass Assembly
Whether the project requires technical injection moulding, CNC machining, or complex assembly for pet hardware, Maidder provides a unified structure for execution. It will also ensure that quality control and on-time delivery are strictly adhered to.
Conclusion
The difference between a successful product launch and a costly failure often lies in the details of the design phase. By prioritizing design for manufacturing and utilizing professional DFM analysis services, brand owners can ensure their plastic components achieve the dimensional stability and quality standards required for the global market. Maidder remains committed to providing engineering-driven solutions that turn complex concepts into reliable, scalable reality.
Please contact us today for a professional technical consultation on your next project.
FAQ
Q: Why choose Maidder for DFM analysis services?
A: Maidder offers over 20 years of engineering experience and provides free moldflow Analysis for complex projects. The integration of Dongguan R&D with Cambodia production ensures that every design for manufacturing report is backed by practical manufacturing expertise and supply chain flexibility.
Q: How does design for manufacturing impact custom plastic injection molding costs?
A: Design for manufacturing detects possible defects such as warpage and shrinkage even before making the molds, and thus saves on the need to have mold modifications done later, saving costs and time-to-market.
Q: Can Maidder ensure dimensional stability for large-scale outdoor products?
A: Yes. Maidder has extensive experience with outdoor products like hard coolers, using DFM analysis services to optimize wall thickness and material properties. This ensures that large-scale custom plastic injection molding parts maintain their shape and function even under extreme temperature fluctuations.
Q: Why is design for manufacturing essential for China + Cambodia production?
A: Integrating design for manufacturing ensures that the engineering standards developed in the Dongguan R&D center are perfectly executed in the Cambodia production facility. This consistency is vital for maintaining quality across a diversified supply chain.
